RCA01-001 Stereo Female RCA Jack , Single RCA Connector Gold Plating

Name: RCA01001 Stereo Female RCA Jack Single RCA Connector Gold Plating
Brand: SANNI
Price: 0.3 USD

Brand Name : SANNI

Model Number : RCA01-001

Place of Origin : China

MOQ : 1000PCS

Price : USD0.3~0.6/PC

Payment Terms : T/T

Supply Ability : 50000pcs/Month

Delivery Time : 25 Working days

Packaging Details : 1000PCS/BOX

Model NO. : RCA01-001

Surface Treatment : Gold Plating

Trademark : SANNI

Interface Type : Plug

Gender : Female

Application : UHF, Automobile, Amplifier

Contact Now

RCA01-001 Single Unit RCA Female Connector Stereo RCA Female Jack

Product Description

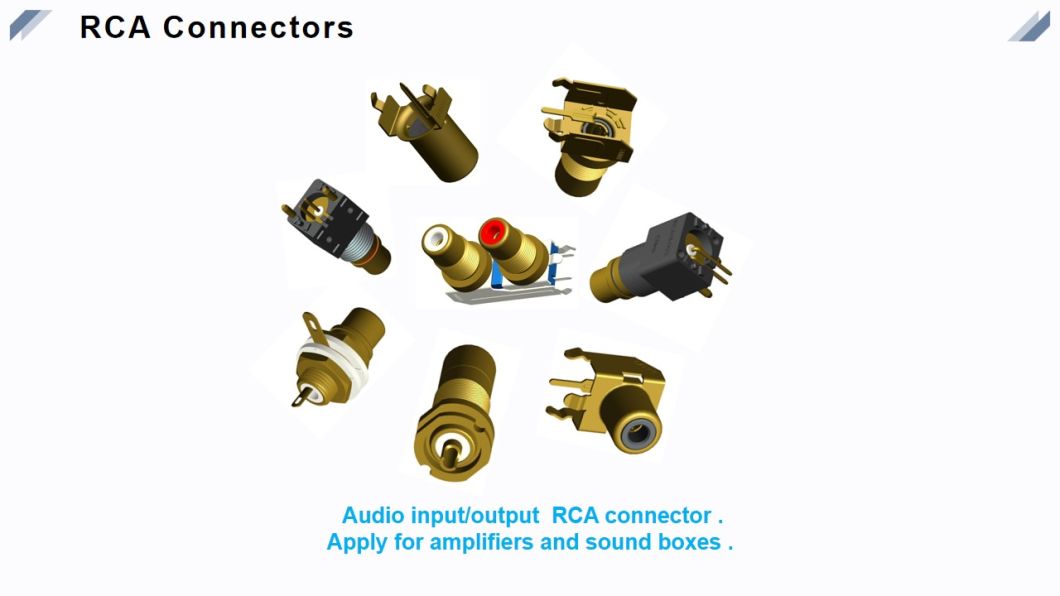

The RCA connector is an electrical connector commonly used to transmit audio and video signals.The name RCA comes from the Radio Corporation of America, which introduced the design in the 1930s. The male and female sockets of a connector are called RCA plugs and RCA jack.It is also called RCA phono connector or phono connector.

Applications:

The RCA connector was originally used for audio signals. Like many other connectors, it has been used for purposes other than originally intended, including DC power connectors, RF connectors, and speaker cable connectors. Its use as a connector for composite video signals is very common, but provides poor impedance matching. RCA connectors and cables are also commonly used to transmit digital audio in S/PDIF format, with plugs colored orange to distinguish them from other typical connections.

Color Code Options:

The Female RCA Jack are often color-coded, yellow for composite video,red for the right audio channel, and white or black for the left channel of stereo audio.

Product Specification:

1.Electrical Specification
Power Rating	30V/DC.1.0A.
Insulation resistance	100MΩ Min.
Contact resistance	30mΩ Max.
Dielectric withtanding voltage	500V AC RMS After 1 Minute
2.Mechanical Specification
Withstanding force for the terminal	30N Max applied in pulled direction for 5 seconds
Insertion force	30N Max
Withdraw force	8N Min.
Withdraw force for center contact	5N Min(Use a OD=3.2±0.05mm,Length=14士0.20mm gauge plug)
3.Durability Specification
Life test	1,500 Cycles Min.
4.Environmental Specification
Temperatrue range	-40℃ to +70℃
Salt spray	24 Hours
